IMPROVE YOUR MOBILE COVERAGE ON THE MOVE CEL-FI GO is a 3G/4G mobile signal amplifier that provides up to 70dB of signal gain - 30x more powerful than a standard antenna/cradle set-up. All the while unconditionally protecting the mobile network.
This kit features the 126cm Blackhawk 7-10dBi antenna. Ideal for Marine applications.
Provides Coverage For Automotive Applications
Simply install CEL-FI GO inside your vehicle and enjoy having great 3G/4G mobile reception. No longer will you need to stop or drive to a particular spot to be able to make and receive phone calls. Your CEL-FI GO can be configured to improve the mobile coverage for all types of vehicles from cars to trucks, to farm machinery and caravans, all with only a change in antenna.
IncreasesMobile Data Speeds
Slow internet speeds on your mobile device are often caused by low signal. If you suffer from low signal on the go, you will be able to relate to the frustration of trying to access email or the internet. Cel-Fi GO will amplify the available LTE or HSPA mobile signal and increase your data speeds dramatically. Email, internet, video and social networking speeds can achieve up to 4x improvement. Note: The 4G/LTE bands can only be utilised for data (not calls) unless both the smart phone and the local network support Voice over LTE (VoLTE).
Extends Mobile Phone Battery Life
Mobile phones use a lot more energy when in poor signal areas. The phone adjusts its output power to compensate in an attempt to boost the poor signal. As a result the phone will consume a lot more battery power. Using Cel-Fi GO, your indoor mobile signal should be high and the battery will last noticeably longer for you to work and talk while on the move.
Improves Voice Quality
The quality of a voice call is usually determined by the phone’s signal strength and nearby interference. With improved signal strength inside your vehicle, Cel-Fi GO mobile version will provide crystal clear voice quality for your cell phones.
CEL-FI GO FEATURES
The mobile solution approved by Telstra and meeting ACMA regulations.
Amplifies and disburses a 3G (HSPA) or 4G (LTE) Telstra mobile signal. Note: Cel-Fi GO will only boost one frequency band at a time.
Provides manual selection of 3G or 4G or utilise the auto band selection. Band selection is via a button on top of the unit or using the WAVE App.
Once installed, Cel-Fi GO has Automatic Gain Control (AGC) continuously monitoring system path loss to deliver maximum gain up to 70 dB.
Provides mobile coverage in and around the vehicle/area.
Rigid cast-aluminium casing with IP54 rating, suitable for adverse environments.
Network-Safe protection that monitors mobile base stations in real time to ensure no interference with the normal function of the mobile network.
Cel-Fi GO supports Bluetooth Connectivity or Micro USB connection to Nextivity’s Smartphone or PC WAVE App.
Intuitive WAVE App allows quick and easy installation by a trained technician.

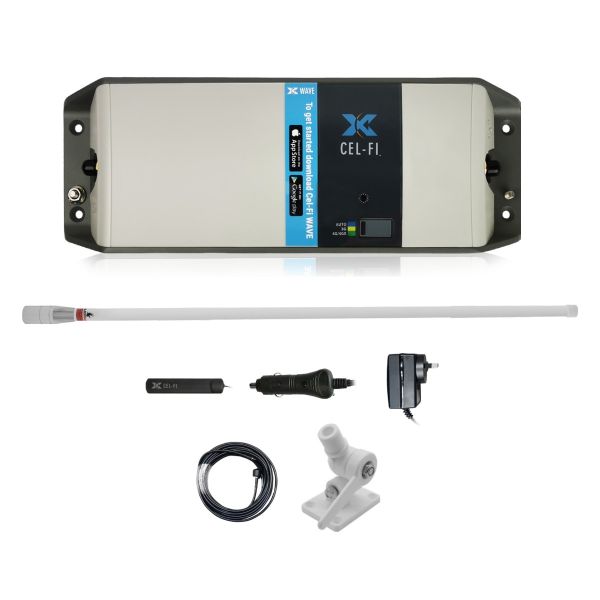

Includes: • CEL-FI GO Repeater • Blackhawk ANT-BH-OM-201 Antenna • Adjustable Angle Bracket • CEL-FI Internal Antenna Kit • 1 x 10m Cable • 240V/12 Volt Power Supply
❖Specifications
Brand
CEL-FI
Model
Cel-Fi GO Telstra MP
Cellular Bands
3G 850 & 4G 700/1800MHZ (one frequency band at a time)
System Gain
Up to 70dB
Dimensions
28mm (H) 87mm (W) 255mm (L)
Weight
600g
Environment
Operating Temperature: 0° to 65° Storage Temperature: -25° to 65° Relative Humidity: 0 to 95%, noncondensing
Power
12VDC via external supply OR cigarette socket External Supply: 100 to 240 VAC, 47 - 63Hz Power consumption less than 15W per unit
Antenna Requirements
SMA Female Outdoor Antenna Connector (50 Ω) SMA Female Indoor Antenna Connector (50 Ω) Approved antenna aresupplied with the units
Warranty
CEL-FI GO is covered by a 24 month manufacturer warranty
Installation
Your CEL-FI GO is approved if installed correctly Only qualified resellers who have undertaken product training should perform installation of CEL-FI GO Mobile version CEL-FI GO’s require you to take into account the vehicles safety mechanisms such as airbags, ABS, Traction Control, Stability Control and Auto Electrics. Incorrect installation may result in water leaks, electrical failure, battery damage, fusing of internal wiring and cables or risk of FIRE. Misuse of this equipment could result in injury and equipment damage.
