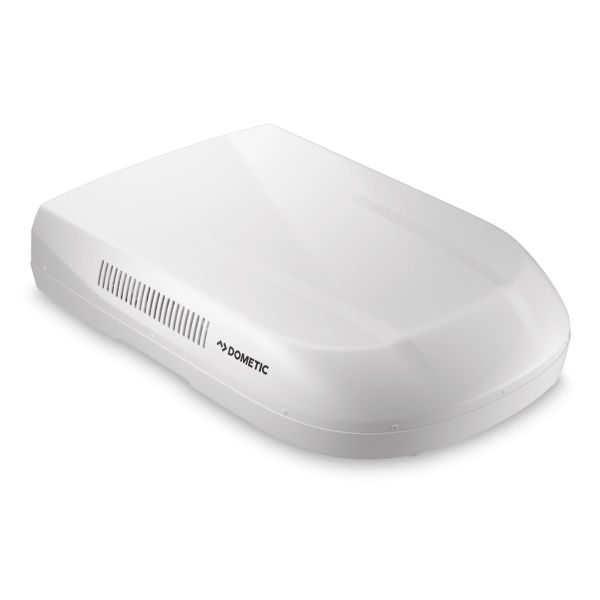

In addition to the performance improvements from the Ibis 3, the Dometic Ibis 4 also features several refinements to the build of the rooftop unit. The shell of the rooftop unit has been redesigned with strong EPP materials to ensure a lightweight build. Weighing in at only 40 kg, the Dometic Ibis 4 is significantly lighter than its predecessor. The length and width have also seen significant reductions in size, resulting in a much more compact rooftop unit. The Dometic Ibis 4 has the option to be fitted to both 400 x 400 mm and 360 x 360 mm roof openings, a first for the Ibis series.
FOR ALL ADVENTURES
Open land, off grid and temperatures above 30 degrees is the dream for many campers. But caravans and camper trailers can get extremely hot on those dreamy trips. The interior becomes hot and sticky, and sleeping can be a real problem. An air conditioner for your RV is the answer. This low profile roof top air conditioner has been designed for the Australian caravan and RV industry and its harsh conditions. The ultra thin design of the Dometic IBIS 4 reduces towing drag and the clearance required under carports and garages. It is even less vulnerable to damage from overhanging tree branches and other obstacles. The air conditioner is quiet and offers high cooling performance - and what's more? It can also be operated by remote control or via electronic touchpad controls.
The Dometic Ibis 4 makes improvements on many of the industry-leading features of the highly sought-after Ibis 3 and packages them in a more lightweight roof top unit. The new-generation compressor with inverter technology used in the Dometic Ibis 4 ensures that vibration is minimised, creating a more pleasant environment.
> Excellent cooling capacity of 2.6 kW
> Dimensions: 758 x 230 x 1112 mm
> Reduced noise levels compared to previous Dometic air conditioners, even at maximum speed
> Adjustable vents for even air distribution
> Lightweight rooftop unit at only 40 kg
> Four fan speeds, including a turbo speed
> Suitable for both 400 x 400 mm and 360 x 360 mm roof openings
❖Specifications
Brand
Dometic
SKU Number
9600009482
Model
IBIS4 Roof Top + ADB
Model on label
IB36HX01RI & CL01HR001
Scope of delivery
Roof Top Unit, ADB, Remote Control, Installation Material, Installation Manual, Operation Manual
Product Description
Roof air conditioner
Input voltage (AC), [V]
220-240
Input frequency, [Hz]
50
Cooling capacity (ISO 5151), [W]
2625
Heating capacity (ISO 5151), [W]
3017
Power consumption - Cooling mode (ISO 5151), [W]
1656
Power consumption - Heat pump (ISO 5151) - Display
